Detalhes do produto: |

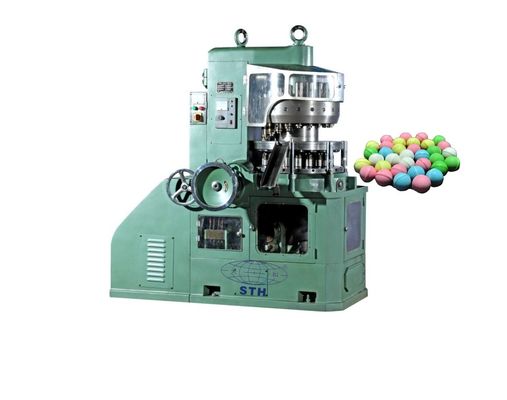

TIANHE Big ball tablet sodium chloride Powder Press Machine Mothballs,Camphor ball
TIANHE Big ball tablet sodium chloride Powder Press Machine Mothballs,Camphor ball Highlight
1.Max pressure 250KN
2. Sodium chloride tablet, Mothballs, Camphor ball
3.Max diameter 55mm
4. Chemical industry
Main Technical Specifications
|
Model |
YH15 |
YH17 |
YH20 |
|
Number of Stations |
15 |
17 |
20 |
|
Max Main Pressure (KN) |
250 |
250 |
250 |
|
Max Tablet Diameter (mm) |
55 |
50 |
40 |
|
Max Filling Depth (mm) |
70 |
70 |
57 |
|
Max Tablet Thickness (mm) |
32 |
32 |
25 |
|
Max Turret Speed (r/min) |
12 |
12 |
12 |
|
Max Production Capacity (pcs/h) |
10800 |
12240 |
14400 |
|
Motor Power (kw) |
7.5 |
||
|
Overall Size (mm) |
1660*1220*1870 |
||
|
Machine Weight (kg) |
3800 |
||
Characteristics

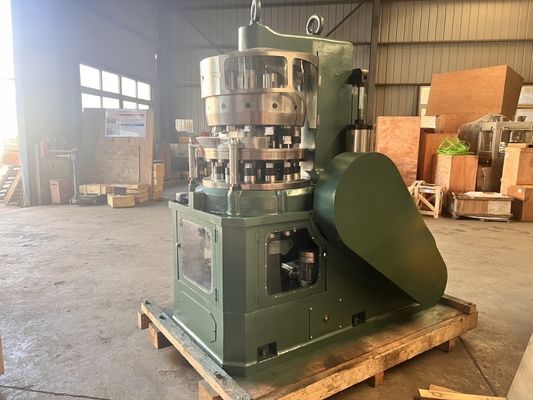

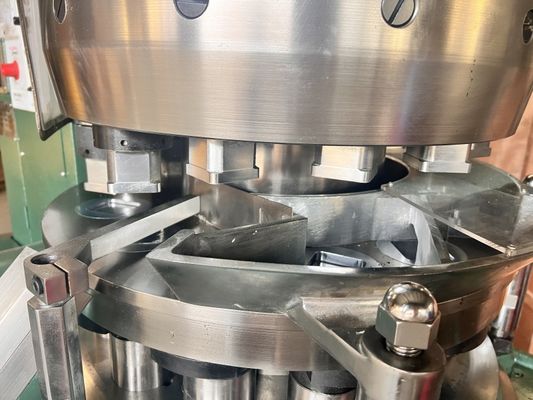

It is a kind of efficient and fast two-way automatic forming machine, which can perform the functions of automatic feeding, forming, tableting and continuous operation. The maximum working capacity is 12000 pieces per hour. The speed of work head can function through stepless speed regulation, which can be changed according to material so as to obtain the best quality. The forming pressure can be adjusted within 25 tons and the maximum feeding adaptability, and convenient adjustment and maintenance.
Company profile
SHANGHAI TIANHE PHARMACEUTICAL MACHIENRY CO.,LTD (STH) was founded in 1992. The company is located in Chongming island Shanghai,China. In the 40 years since its establishment, STH has successfully achieved an extraordinary leap based on the strategy of "brand-opening and terminal-oriented". Development and become a mature enterprise in the tablet press machine industry in one fell swoop.
STH mainly produces tablet press machine, packing machine, processing equipment suitable in Pharmacy, Foods, Chemical industry. And has independent large-scale research and development institutions in the same industry in China, a complete manufacturing system and a huge marketing service network. It is an international manufacturing company integrating R&D, manufacturing, marketing and service.
STH’s machines have been sold all over the world (70 countries), such as: Europe, Canada, New Zealand, Southeast Asia,Pakistan, Iran, Algeria etc. The quality of the products has been significantly improved in Pharmacy, Foods, Chemical industry, and they are favored by customers at home and abroad.
Company mission: focus on quality and service
Service:
Warranty:
Our machine is under warranty for 12 months. Most components are free-replacement warranty,but the client needs to pay the DHL fee . Artificial and thunder strike damage is beyond the scope of the warranty. Spare parts are not in the warranty time.
After Sales Service :
Our engineer is available to provide after sales service oversea. Customers need to afford
the visa, tickets , accommodation, hotel and 100 USD per day.
Technical Support: We will be a consultant for clients about the technical problem before
order, provide drawing specification, design customized project, analyze and solve
technical problem.
Operation Training:
We are pleased to receive client’s technician to our factory and learn the operation course,
take photo, video.
