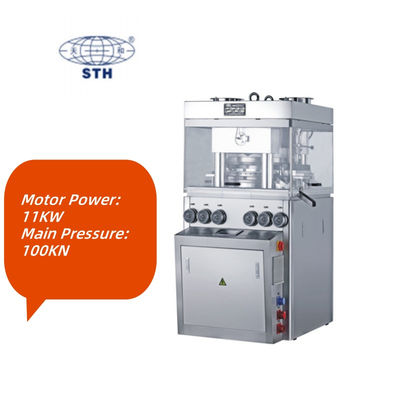

GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity

Imagem Grande : GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity

Detalhes do produto:

Certificação:	CE Certified, GMP Compliant, ISO Certified, CE, GMP, ISO,EAC

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1
Preço:	35000

Contato

Descrição de produto detalhada

Modelo No.:	GZP55	Material:	Aço inoxidável
Pressão principal:	100kn	Pré-pressão:	20kn
Sistema de controle:	PLC e tela de toque	Dispositivo alimentador:	Alimentador de força
sistema de lubrificação:	Sistema de lubrificação automático	Energia motora:	11kw
Diâmetro máximo do comprimido:	25mm	Capacidade de produção:	396000pcs/h
Velocidade máxima da torre:	60r/min	Profundidade máxima de enchimento:	15mm
Espessura máxima do comprimido:	6mm	Tamanho geral:	137011701800mm
Peso da máquina:	3200kg
Destacar:	100kN Main Pressure Rotary Tablet Press , 20kN Pre-Pressure Tablet Press Machine , 396000PCS/H Production Capacity High Speed Tablet Press

GZP55 Series High Speed Rotary Tablet Press Machine

Application

This double-sided rotary tablet press machine processes granular materials into round, irregular, or double-side engraved tablets. It serves pharmaceutical, chemical, food, and electronic industries.

Key Features

High-speed operation with multiple punches and double press rollers for mass production
Stainless steel construction with hardened rotary turret surface for wear resistance (GMP compliant)
Precision tablet pressing system with twice compression forming for consistent weight
Double impeller force feeder improves granule flow and filling accuracy
Automatic central lubrication system extends machine lifespan
Oil-proof, dust-proof, and noise-proof design
Overpressure protection prevents punch damage
PLC and touch screen control for easy operation
Optional capability for double-layer tablet production

Technical Specifications

Model	GZP-35	GZP-43	GZP-51A	GZP-51B	GZP-55
Number of stations	35	43	51	51	55
Tooling Standard	D	B	BB	ZP	BBS
Max Tablet Diameter (mm)	25 (round) 25 (irregular)	18 (round) 19 (irregular)	13 (round) 16 (irregular)	13 (round) 16 (irregular)	11 (round) 13 (irregular)
Max Filling Depth (mm)	20	18	15	15	15
Max Production Capacity (pcs/h)	252,000	309,600	367,200	367,200	396,000
Motor Power (kw)	7.5
Machine Weight (kg)	3200

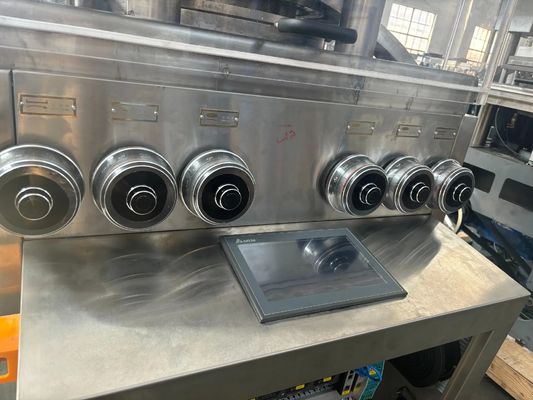

Delta 10-inch Color Touch Screen

Displays real-time working pressure, speed, and output data
3-level management authority
Optional electronic signature CFR21 compliance
Remote access capability
Single value pressure display

Electrical System

Uses premium Chinese components (Delta, Delixi)
Advanced tableting system with twice compression forming

Automatic Lubrication System

Fully lubricates pressure wheel, track, and punching rod
Includes machine cooling fan

Protection Functions

Window switch
Motor overload protection
Voltage abnormal alarm
High temperature alarm

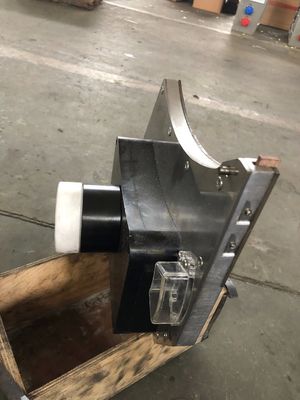

Feeder Device

Double impeller type force feeder improves granule flow and filling precision

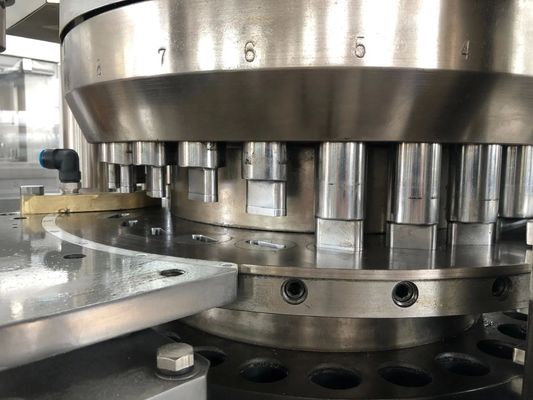

Punches & Dies (Customizable)

TSM-Tooling standard compliant
Available in various shapes: round, irregular, concave, bevel-edged, etc.
Material options: S7/D2, DC53, 6CrW2Si, GCr15

Packaging & Shipping

Export-standard wooden packaging (free of charge)
15-45 working days delivery time
Shipping options: SEA, AIR, EXPRESS

Frequently Asked Questions

Q: Where is your factory located?

A: Our factory is in Shanghai's Chongming District. We welcome visits with prior arrangement.

Q: How can I verify machine suitability for my product?

A: Send samples for testing - we'll provide videos, photos, or live demonstrations.

Q: How can I trust your company for first-time business?

A: We recommend using Trade Assurance Service to protect your transaction.

Q: What after-sales support do you provide?

A: 1-year warranty with 24-hour technical support and lifetime service commitment.

Q: How to contact you?

A: Use the contact information on this page (email, WeChat, WhatsApp, phone).

Certifications

Company Profile

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is an innovative manufacturer with 30+ years experience, exporting to 70+ countries. We provide complete solutions for pharmaceutical and food processing equipment.

As a high-tech enterprise, we control all manufacturing processes from casting to final assembly. We emphasize quality control and customized solutions based on customer requirements analysis.

Our machines feature:
