Maquinaria farmacêutica Co. de Shanghai Tianhe, Ltd.
Maquinaria farmacêutica Co. de Shanghai Tianhe, Ltd.
Detalhes do produto:
Condições de Pagamento e Envio:
|
| Modelo No.: | GZP-57 | Material da máquina: | Aço carbono, aço inoxidável |
|---|---|---|---|
| Padrão de ferramentas: | BBS | Estações numéricas: | 57 |
| Pressão principal máxima: | 100 kN | MAX pré-pressão: | kN 20 |
| Capacidade máxima de produção: | 410400 PCS/H. | Energia motora: | 11 KW |
| Diâmetro máximo do comprimido: | Comprimido redondo: 11 mm, comprimido irregular: 13 mm | Profundidade máxima de enchimento: | 15 mm |
| Espessura máxima do comprimido: | 6 mm | Velocidade máxima da torre: | 60 r/min |
| Tamanho geral: | 1370*1170*1800 mm | Peso da máquina: | 3200 kg |

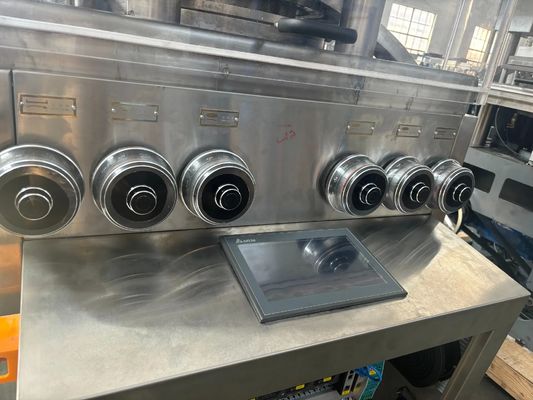

| Sistema de controle: | PLC e tela de toque | ||
| Destacar: | 57 Stations Rotary Tablet Press,410400 PCS/H Capacity Tablet Press,Automatic Lubrication Tablet Press |
||

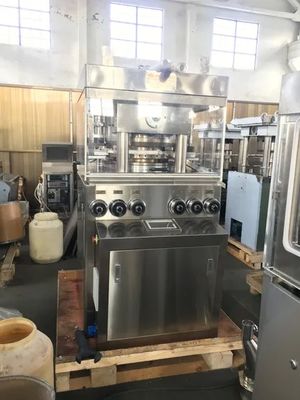

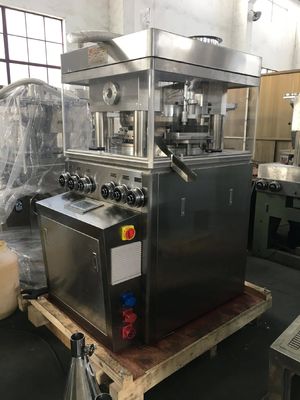

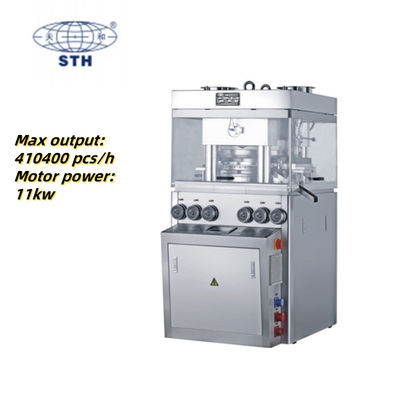

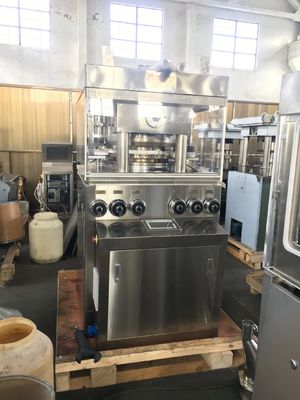

This double-sided press type rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Designed for pharmaceutical, chemical, food, and electronic industries, it meets GMP requirements.
| Model | GZP-57 |
|---|---|
| Number of Stations | 57 |
| Tooling Standard | BBS |
| Max Main Pressure (KN) | 100 |
| Max Tablet Diameter (mm) | Round: 11 | Irregular: 13 |
| Max Production Capacity (pcs/h) | 410,400 |
| Motor Power (kw) | 7.5 |
| Dimensions (mm) | 1370×1170×1800 |
| Weight (kg) | 3200 |
A: Our factory is in Shanghai's Chongming District. We welcome visits by appointment.
A: Send samples for testing - we'll provide videos and online demonstrations.
A: 1-year warranty with 24-hour technical support and lifetime assistance.
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is an innovative manufacturer with 30+ years experience in pharmaceutical processing equipment. We export to 70+ countries and offer complete vertical integration from casting to final assembly.
Our machines feature:
