Detalhes do produto:
|
| Material: | S7/D2 | Ferramentas de perfurar: | EU-D/B/BB/BBS, ZP, Personalizado |
|---|---|---|---|
| Tipo do perfurador: | ZP, ferramentas da UE | Aplicável para: | máquina de prensa de comprimidos |
| Origem: | China | Tempo de produção: | 15-20 dias |

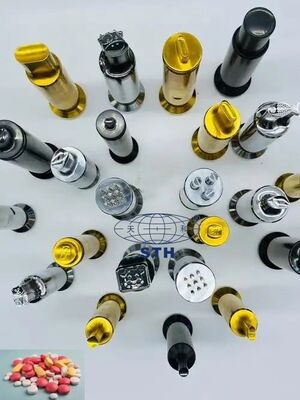

Customized Punches and dies Tablet Press Tooling EU/ZP for Tablet Compression Machine
1. Overview
Tablet press tooling, commonly referred to as dies and punches, is the heart of the tablet compression process. These precision-engineered components work within a tablet press (or tablet compression machine) to form powdered or granular materials into tablets of specific size, shape, weight, and hardness. The quality of the tooling directly determines the tablet's physical characteristics, production efficiency, and operational longevity.
2. Key Components
A standard set of tablet press tooling consists of three core parts:
· Upper Punch: Descends into the die cavity to apply compression force.
· Lower Punch: Rises to fill the die cavity, controls tablet weight, and ejects the finished tablet.
· Die: A cylindrical block containing a precisely bored cavity that defines the tablet's size and shape (round, oval, capsule, custom, etc.).
3. Materials & Manufacturing
· Primary Material: High-grade, wear-resistant tool steels (e.g., D2, D3, A2) are standard. For highly abrasive or corrosive formulations, premium materials like Carbide (Tungsten Carbide) are used for exceptional durability and lifespan.
· Key Processes: Manufacturing involves precision machining, grinding, heat treatment (hardening and tempering), and advanced surface finishing (e.g., polishing, specialized coatings like TiN - Titanium Nitride) to achieve exact tolerances, superior wear resistance, and anti-sticking properties.
4. Types of Tooling
Tooling is classified by its design and the press it fits. The dominant international standards are:
· B Tooling (BB Tooling): The most common standard for medium to large rotary presses. Distinguished by a 19.0 mm lower punch shaft diameter.
· D Tooling: A heavier-duty standard with a larger 25.4 mm lower punch shaft diameter, designed for high-tonnage presses and larger tablets.
· Euro Standard (B Tooling compatible): A widely accepted European variant with slight dimensional differences, often compatible with B tooling presses with minor adjustments.
· Custom Tooling: Engineered for unique tablet shapes (multi-tip, complex logos, break-lines) or specialized applications.
Punch drawing for reference
EU Tooling
ZP Tooling
Tablet sample
